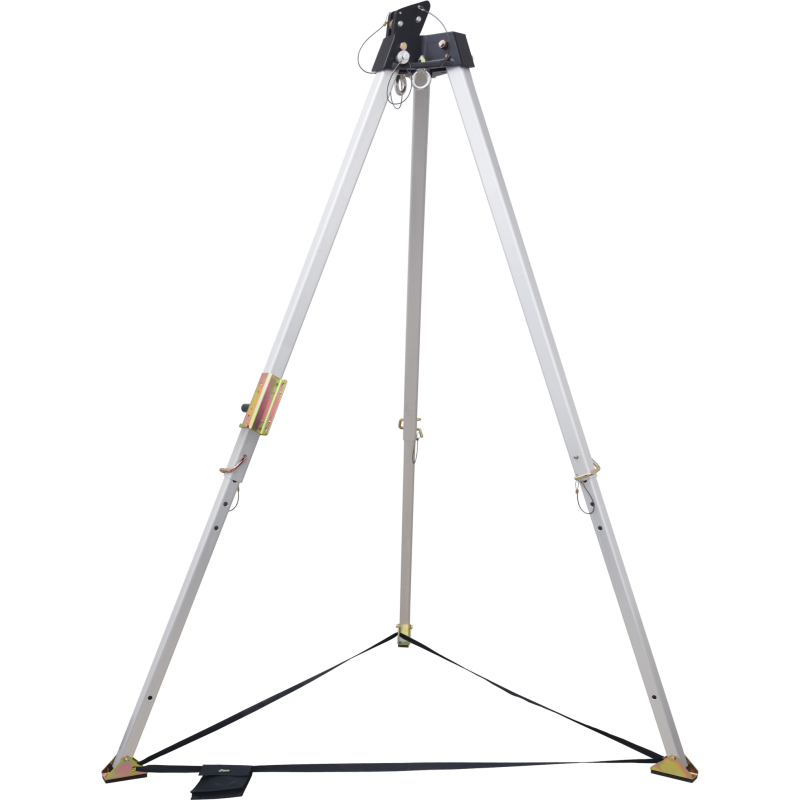

Tripod with rescue block 10m.

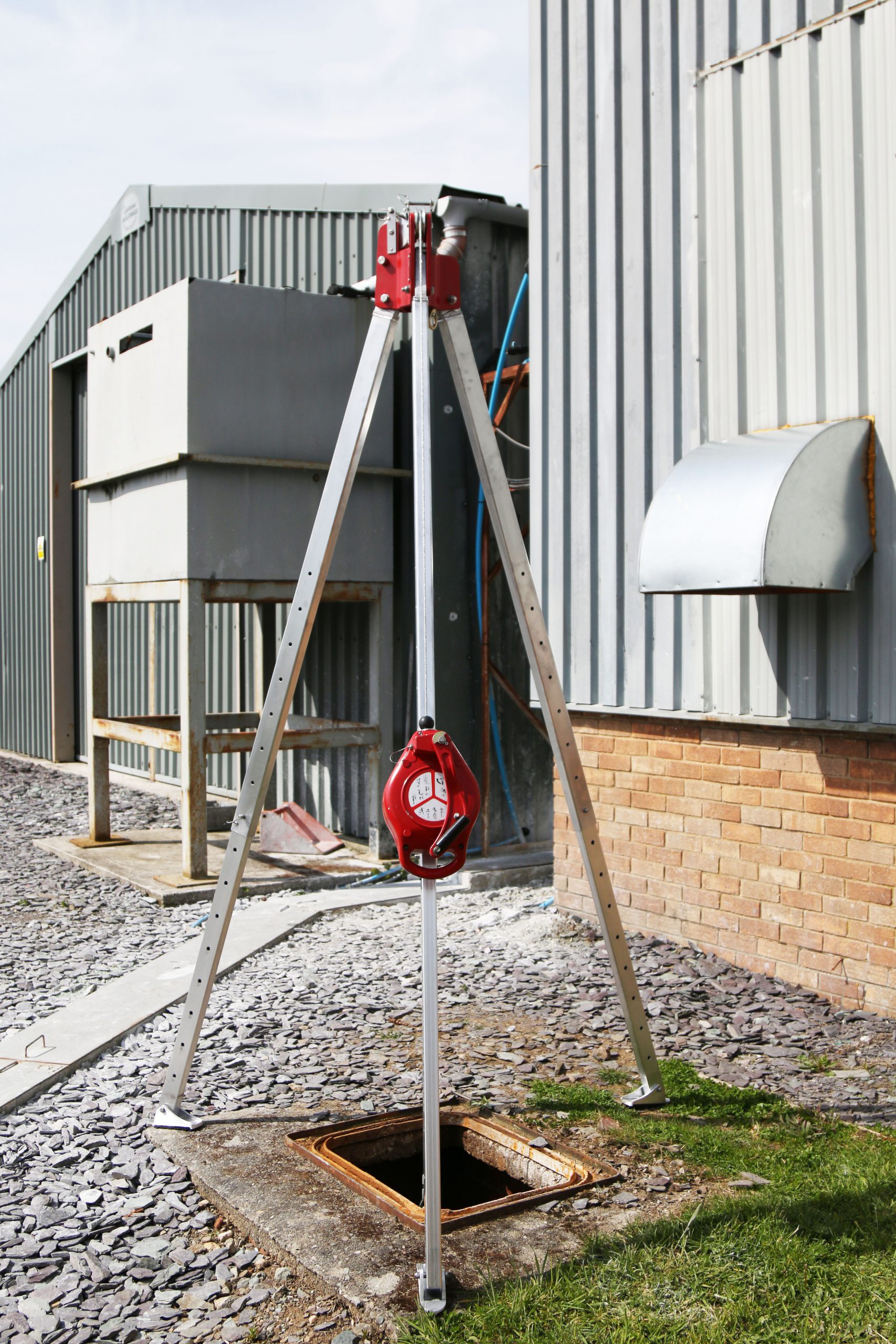

For access in closed compartments like cisterns, wells etc.
Comes with two extra eye-bolts as attachment point.
Cast head by an aluminum alloy, legs made of aluminum.
Steel Support Shoes with rubber sole to enhance friction and give more stability.
The attachment points strength is greater then 12 kN.
Each tripod comes with a builtin fixture to attach our winches:
FA 60 003 20 / FA 60 003 30 / FA 60 023 20 / FA 60 023 20R.
Each tripod comes with a tripod bag with carryon staps.
Productinfo Tripod:
Adjustable hight:: from 1,15m to 2,15m
Hweelbase: from 1,08m to 1,62m
Max loadcapacity: 500 kg below the head / 250 kg on the legs
Complies with: EN795: 2012 type B, ATEX-directiv 2014/34 / EU, machinedirectiv, EN 1808
Package content:
1pc Tripod adjustable 1,15m till 2,15m
1pc 10m Rescue block
Weight: 13kg
